AMICALE FACEL HOLLAND

BRAKES

catnr.

new #

description



8 cyl drumbrakes FV/ HK/ Exc



BRAKE DRUMS



"- sometimes old brake drums can be rebuilt. We have possibilities, so please ask;



- we are investigating the manufacture of new brake drums



- the drumbrake system can be replaced by our alternative disc brake system without drastic modifications;  see chapter G-5 further down this list for more information"

G-1a

G-010100

set (4) wheelcylinders front with internal brake pipes altenative (original type no longer available)

G-1aa

G-010101

repair kit for G-1a (per axle for 4 cylinders)

G-1b

G-010200

repairkit for original wheelcylinders front (per axle)

G-1c

G-010300

wheelcylinder rear FVS original model

G-1cc

G-010303

wheelcylinder rear Excellence 1" original model

G-1d

G-010400

repairkit for wheelcylinders rear FVS (per axle)

G-1dd

G-010404

repairkit for wheelcylinders rear (per axle)  Exc

G-1e

G-010500

mastercylinder, standard

G-1ee

G-010505

mastercylinder Excellence 1" (also suitable for FV/ HK)

G-1f

G-010600

repairkit for mastercylinder

G-1f1

G-010600

repairkit for mastercylinder Excellence 1"

G-1g

G-010610

cable set for handbrake FV/HK

G-1gg

G-010606

cable set for handbrake Excellence

G-1i

G-010900

set brake pipes (cunifer 10) FV/ HK  *

G-1ii

G-010909

set brake pipes (cunifer 10) Excellence  *



we suggest to re-use the T-connections and banjo-fittings from the original brake system on your car (after shot-blasting these will be 'as new') because these parts are extinct

G-1j

G-011000

3-way connector 7/16 (brake pipes) alternative

G-1k

G-011100

set springs (brake shoes rear)

G-1kk

G-011111

set springs (brake shoes front)

G-1l

G-011200

bleed screw



8 cyl discbrakes   HK/ Exc/ Facel II

G-2aa

G-020101

set (4) calipers 2½" new HK/Exc/Facel II front new parts

G-2b

G-020200

bolt (to fix front caliper)  each

G-2c

G-020300

repairkit front caliper 2½ (per axle)

G-2d

G-020400

set (4) calipers 1¾ (new) HK-500/ FacelII rear

G-2e

G-020500

special bolt to fit 2½ caliper on king pin assembly  each

G-2ee

G-020505

special bolt to fit 1¾ caliper on rear axle  each

G-2f

G-020600

bolt (to fix rear caliper)  each

G-2g

G-020700

repairkit rear caliper 1¾ (per axle)

G-2h

G-020800

set of brake pads (4) front

G-2hh

G-020808

set of brake pads (4) rear

G-2j

G-021000

bleedscrew

G-2k

G-021100

caliper 17/8 Excellence rear

G-2l

G-021200

repairkit caliper 17/8 Excellence rear

G-2m

G-021300

mastercylinder (original size 7/8") HK/ Facel II

G-2m'

G-021310

mastercylinder (bigger capacity) HK/ Facel II/ Exc

G-2n

G-011400

repairkit mastercylinder original size

G-2n'

G-021410

repairkit mastercylinder 1 "  (bigger capacity)

G-2o

G-021500

set (4) handbrake brake pads

G-2of

G-021506

keep plate for brake pads front

G-2or

G-021515

keep plate for brake pads rear

G-2off

G-021518

support plate for brake pads front

G-2orr

G-021519

support plate for brake pads rear

G-2p

G-021600

brake- disc front  each

G-2q

G-021700

brake disc rear  each

G-2s

G-021900

cable set for handbrake HK/ Facel II

G-2t

G-022000

set (3) brake hoses Facel II  (both sides outside thread)

G-2t2

G-022020

set (3) brake hoses Facel II  (one side outside thread/ other side inside thread

G-2v

G-022200

3 way connector 3/8 (alternative)

G-2v²

G-022220

3 way connector 7/16 (alternative)

G-2v3

G-022230

4-way union brake line  3/8 x 24 UNF

G-2w

G-022300

set brake pipes Facel II  (cunifer 10)  with disc brakes

G-2w²

G-022320

set brake pipes (cunifer 10)  HK-500 with disc brakes

G-2w3

G-022330

set brake pipes (cunifer 10)  for Excellence with disc brakes

G-2z

G-022600

retraction plate handbrake pad carrier

G-2z1

G-022610

bolt to fit handbrake pad carrier on the rear caliper holder  each



The parts in this chapter G-2 are offered to repair, renew or overhaul the original disc brake system. See also chapter G-5 for our alternative disc brake system



8 cyl all models either drum or disc brakes

G-3a

G-030100

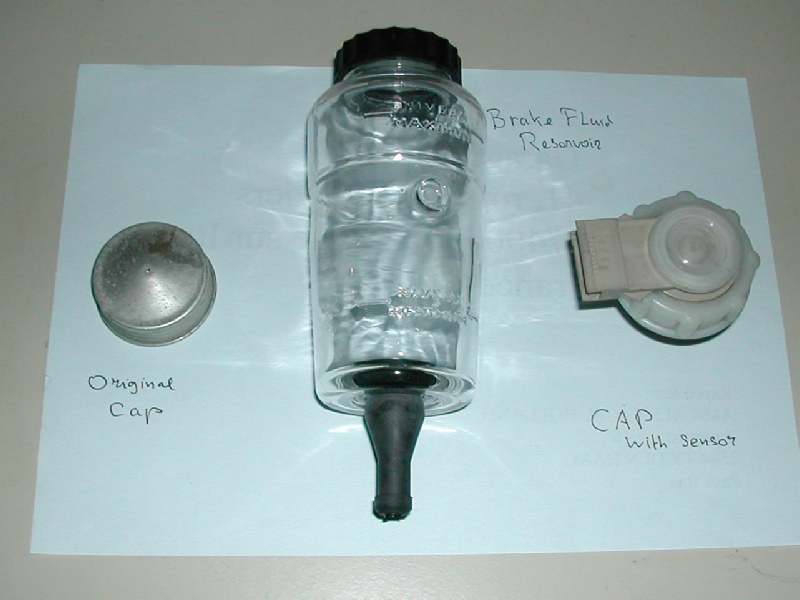

brakefluidreservoir original (in glass) with cap

G-3a1

G-030110

cap for brake fluid reservoir

G-3b

G-030200

brake servo (alternative/ easy installation)  same power as original FV/ HK/ Exc/ Facel II

G-3bb

G-030202

brake servo (alternative) stronger type FV/ HK/ Exc,                        NOT for Facel II

G-3b1

G-030210

repairkit brake servo (G-3b)

G-3b2

G-030220

repairkit brake servo (G-3bb)

G-3d

G-030400

set (3) brake hoses  FV/HK/Exc

G-3d²

G-030420

coiled spring (stainless steel) to protect brake hose (per m)

G-3e

G-030500

banjo-fitting with  banjo bolt +2 copper washers,

G-3e1

G-030510

stainless steel banjo-bolt + 2copper rings on original banjo

G-3ee

G-030505

adapter (brake hose G-2t to G-3e) Facel II

G-3f

G-030600

rubber connection G-3a² to pipe

G-3he

G-030805

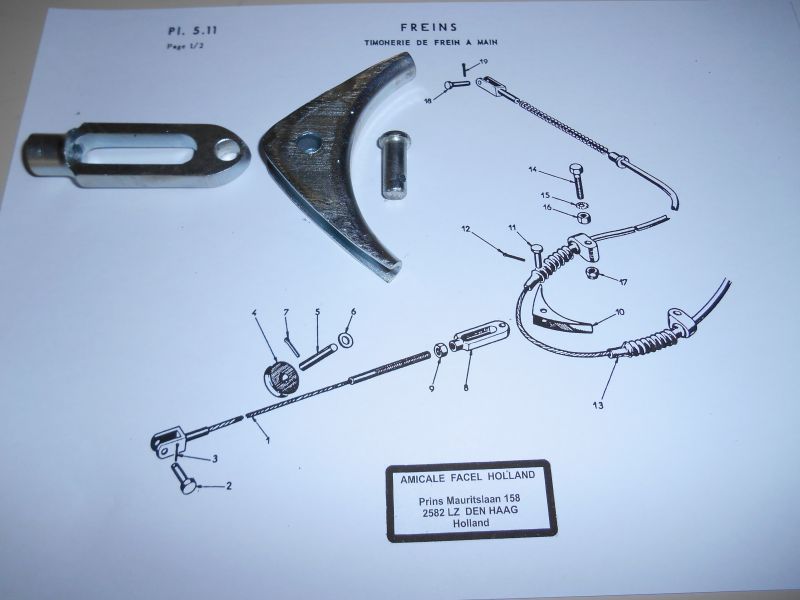

equalizer handbrake cable

G-3hs

G-030819

adjustment device for handbrake cable

G-3ht

G-030820

clevis pin to connect G-3he with G-3hs

G-3i

G-030900

stoplamp switch (on mastercylinder)

G-3j

G-031000

cap for brake fluidreservoir (original type) with low level warning sensor

G-3m

G-031300

banjo bolt on master cylinder  (in case extra brake line to booster is omitted)

G-3m1

G-031310

banjo between G-3i and mastercylinder for brake line to booster

G-3mm

G-031313

banjo with nipple (alternative) on mastercylinder (connection brake fluid reservoir)

G-3o

G-031500

Mico-Lock



The handbrake on cars with disc brakes is not very powerful. This is particularly unpleasant on cars with automatic transmission (which originally does not have  a P (park) position) In order to solve this problem we have the Mico Lock system available. This system can "lock" the 4 road wheels with the help of an electric valve in the hydraulic brake lines.

G-3p

G-031600

boot for mastercylinder, all models

G-3pp

G-031616

push rod mastercylinder

G-3q

G-031700

brake line clamp

G-3s

G-031900

vacuum hose for brake booster

G-3s1

G-031910

adapter to fit G-3s on intake manifold

G-3t

G-032000

base plate handbrake lever assembly on chassis

G-3u

G-032100

bracket (support) handbrake cable on chassis



Facellia/ Facel III/ Facel 6

G-4a

G-040100

set (4) calipers  2¼  front

G-4b

G-040200

repairkit caliper  2¼ (exchange) front (per axle)

G-4bb

G-040202

repairkit caliper  21/8 (exchange) front (per axle)

G-4b2

G-040220

set (2)  alternatieve calipers front (4 piston type with double brake pad surface), brake pads and fitting bolts included.            No modifications needed, ready to be fitted

G-4b3

G-040230

banjo, banjo-bolt + adapter to fit original type brake hose on      G-4b2, per side, (so 2 sets per car needed)

G-4c

G-040300

set (4) calipers 1½ (new) rear

G-4e

G-040500

repairkit rear caliper 1½(per axle)

G-4f

G-040600

set (3) brake hoses (front and rear) 2x short/ 1x long Facellia/ FIII

G-4f1

G-040610

set (3) brake hoses (front and rear) 3x short  Facel 6

G-4f2

G-040620

flexible brake hose between master cylinder and brake servo  Facel III/6; also suitable for Facellia in case the brake booster is fitted near the radiator

G-4g

G-040700

mastercylinder (also for hydraulic clutch Facellia)

G-4h

G-040800

repairkit for mastercylinder

G-4i

G-040900

set (4) brakepads Facellia/Facel III/ Facel 6 (front or rear)

G-4j

G-041000

brakefluidreservoir (plastic)  with nut (also for hydraulic clutch Facellia)

G-4k

G-041100

brake-disc (front and rear) Facellia/ FIII/ Facel 6   each

G-4m1

G-041310

repairkit for original brake servo unit Facellia (rubber parts only)

G-4m2

G-041320

repairkit for original  brake servo unit Facel III

G-4n'

G-041410

servo unit  Facel III type, also for Facellia/ Facel 6, alternative

G-4o

G-041500

set handbrake pads (4)  Facellia/ Facel III/ Facel 6

G-4p

G-041600

cable set for handbrake Facellia/ Facel III/ Facel 6

G-4q

G-041700

set (2) brake caliper support plates front

G-4r

G-041800

set brake lines (cunifer 10)  Facellia/ Facel III



G-5 alternative disc brake system  (FV/ HK/ Facel II)



The original Dunlop disc brake system on the 8 cyl Facel Vega's is still "sufficient", but maybe a bit outdated in the current European traffic



Therefore we have -with the help of our renowned brake specialist- developped an alternative disc brake system which generates about 25% more stopping power. This system has Girling calipers, has ventilated discs at front and is -amongst others- based on Jaguar E-type V12 parts



it is not necessary to modify the car itself and the system is completely reversible to original



This system can be used to "update" 8 cyl Facels which have the original disc brake system, as well as to adapt  an 8 cyl coupé with drum brakes  drastically



Because this alternative system employes Rudge hubs with knock-off spinners, it is not suitable to convert the Excellence  (unless one is not against the idea to have an Excellence with knock-off spinners)



we offer this system in kit form (with instructions) which can be fitted by every competent mechanic



Depending on your type of Face Vega we will gladly offer you a quotation for the supply if a specific kit. Of course we can also fit this system on your car in our workshop
